180 Degree High Temperature Sterilization Steam Cleaning Machine

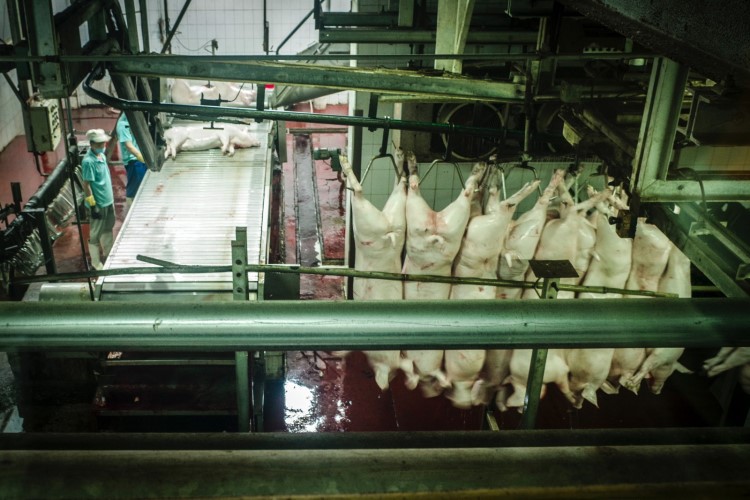

In the food industry, 90% of food contamination occurs in the production and processing process, as well as in the secondary pollution of food transportation and packaging. Germs that are harmful to the human body, such as Salmonella, Staphylococcus, Clostridium, Port Gonorrhoeae, Escherichia coli, Botox, Listeria, etc., so cleaning and disinfection of food production lines or food processing operations The work that must be carried out every day, and the traditional cleaning operation is to use water and detergents, and the detergents contain a large amount of chlorine, iodine, ammonium, acid, acetaldehyde and other chemicals that are harmful to the human body, and are also harmful to food. Secondary pollution will occur, but the use of high-temperature saturated steam for cleaning can effectively avoid the disadvantages of traditional cleaning operations, because modern medicine has proved that no microorganisms and germs can survive in a high-temperature environment, so high-temperature saturated steam has sterilization and disinfection. At the same time, high-temperature saturated steam can dissolve any stubborn grease and make it vaporize, and it can cut into any small cracks and holes, so that oil stains and germs have no place to hide, so as to achieve sterilization, disinfection, water saving, environmental protection, Clean, high temperature, high pressure and dry requirements.

Sterilization and disinfection steam cleaning machine 180 degrees high temperature

The virus can survive for 1 month in 4 ºC water and 1 week in lower temperature feces. The virus is generally sensitive to heat and can be inactivated by heating at 65 ºC for 30 minutes or boiling (100 ºC) for more than 2 minutes. In the ultra-high temperature saturated steam of 180°C generated by the washing machine, it will die instantly.

Do a good job of protection and unite

Since bacteria and various viruses are transmitted through the air, causing respiratory infections, sterilization is the key to resist infection. We can try to avoid crowded public places, but we can't live without it at home. Therefore, if we can ensure comprehensive sterilization and disinfection at home and in public places, and do a full range of protection, we can greatly reduce the damage of diseases.

High temperature disinfection is safe and effective

The traditional methods of sterilization and disinfection are alcohol with a concentration of more than 75%, 84 disinfectant, and ultraviolet lamps, but these methods will pollute the environment, and at the same time, the human body will be uncomfortable with alcohol and disinfectants, and ultraviolet lamps may damage the skin and eyes. The virus is generally sensitive to heat, so high temperature can effectively kill the virus. The data show that the virus can survive for 1 month in 4 ºC water, 1 week in lower temperature feces, and can be inactivated by heating at 65 ºC for 30 minutes or boiling (100 ºC) for more than 2 minutes. In the ultra-high temperature saturated steam of 180 ºC, the machine will die instantly.

In the ultra-high temperature saturated steam of 180°C, the virus died instantly!

The traditional cleaning operation is to use water and detergent, and the detergent contains a large amount of chlorine, iodine, ammonium, acid, acetaldehyde and other chemicals that are harmful to the human body. The use of high-temperature saturated steam for cleaning can effectively remove it. The disadvantages of traditional cleaning operations, because modern medicine has proved that no microorganisms and germs can survive in a high temperature environment, so high temperature saturated steam has the effect of sterilization, and high temperature saturated steam can dissolve any stubborn grease and make it vaporize and evaporate, and It can cut into any small cracks and holes, so that oil stains and germs have no hiding place, so as to meet the requirements of sterilization, disinfection, water saving, environmental protection, cleanliness, high temperature, high pressure and drying.

After years of research and development, Beijing CMD Surface Technology Equipment Co., Ltd. has produced a series of sterilization and disinfection high-temperature saturated steam cleaning machines.

In the food industry, 90% of food contamination occurs in the production and processing process, as well as in the secondary pollution of food transportation and packaging. Germs that are harmful to the human body, such as Salmonella, Staphylococcus, Clostridium, Port Gonorrhoeae, Escherichia coli, Botox, Listeria, etc., so cleaning and disinfection of food production lines or food processing operations The work that must be carried out every day, and the traditional cleaning operation is to use water and detergents, and the detergents contain a large amount of chlorine, iodine, ammonium, acid, acetaldehyde and other chemicals that are harmful to the human body, and are also harmful to food. Secondary pollution will occur, but the use of high-temperature saturated steam for cleaning can effectively avoid the disadvantages of traditional cleaning operations, because modern medicine has proved that no microorganisms and germs can survive in a high-temperature environment, so high-temperature saturated steam has sterilization and disinfection. At the same time, high-temperature saturated steam can dissolve any stubborn grease and make it vaporize, and it can cut into any small cracks and holes, so that oil stains and germs have no place to hide, so as to achieve sterilization, disinfection, water saving, environmental protection, Clean, high temperature, high pressure and dry requirements.

CMD-BX Technical parameters
model	CMD-BX80	CMD-BX160	CMD-BX260	CMD-BX350	CMD-BX530	CMD-BX710
Voltage	380V	380V	380V	380V	380V	380V
current	14A	27.3A	41A	54.7A	82A	109.5A
power	9KW	18KW	27KW	36KW	54KW	72KW
heat production	7.7 Kca/h	15.46 Kca/h	23.193 Kca/h	30.924 Kca/h	46.386 Kca/h	61.848 Kca/h
work pressure	10 Kg/cm2	10 Kg/cm2	10 Kg/cm2	10 Kg/cm2	10 Kg/cm2	10 Kg/cm2
steam production	10.8 Kg/h	25.7Kg/h	38.6Kg/h	51.4Kg/h	77.1Kg/h	102.9Kg/h
Generator temperature	180℃	180℃	180℃	180℃	180℃	180℃
water tank capacity	50 L	50 L	50 L	50 L	50 L	50 L
water consumption	13 L/h	25 L/h	37.5 L/h	50 L/h	75L/h	102L/h
Hose length	5 m	5 m	5 m	5 m	10 m	10 m
Start Time	5-10min	5-10min	5-10min	5-10min	5-10min	5-10min
Working hours per day	24 h	24 h	24 h	24 h	24 h	24 h
dimensions	900×500×600	950×500×700		1000×800×700	1200×1000×800
weight	90 Kg	175 Kg	256 Kg	270 Kg	300 Kg	330 Kg

Common industry cleaning methods comparison
Item
Saturated steam
Dry ice
Chemistry
High pressure
Ultrasonic:
Principle

high temperature of saturated steam and high pressure to remove oil stain and blemishes
The frigid temperature of the dry ice -109.3°F or -78.5°C "blasting" against the material to be removed, causes it to shrink and loose adhesion from its sub surface
using organic or inorganic chemical cleaning Liquid to remove dirt, grease, or stains
professional equipment provides high pressure water with multi beam, multi direction, multi pressure
Ultrasonic frequencies generally range between 20 kilohertz and 50 kilohertz, It produces shock waves that undermine dirt and blast it off.
Features

1. Wide applicability: machinery, painting, cold and hot process, electronics and food industry.
2.save energy, green environmental protection
3.low cost, easy to operate
No second pollution, only need to collect dirt Used in special industry of developed country.
Original and general method, cleaning liquid with acid or alkali erodes equipment.
Longer downtime, higher cost
Washing effect depend on water pump quality
Suit for fine particles, no effect for oil stain
Pollution

Meet the requirements of environmental protection
Need to add collector
Serious pollution
Cleaning liquid hurt people and machine.
Serious pollution, being phased out gradually.
There is pollution if use chemical solvents
Effect
high efficiency. 98%.
Excellent effect
Unable to pipe and hole, metal change after washing
Low efficiency,
need to dry
Good effect In some particular occasions
Economy
low cost,
low consumption,
no cost for environmental protection
High cost for equipment and dry ice
High cost for environmental protection
High cost for consumption and environmental protection
High cost, high consumption, complex technique
Note
Improve working conditions, reduce labor intensity, raise cleaning efficiency, reduce production cost
Requires high airy environment and safety condition.
Damage electronic component, easy to rust.
Requires high water quality and labor protection
It is difficult to hold frequency, temperature, time and medium for deferent object

Features:

Water Saving: Only need 10 Liter water per hour when washing.
Super Clean: In the condition of high temperature and high pressure, saturated steam can catch, dissolve and evaporate any mini size oil stain on the surface and reach super cleanliness.
Environmental protection: No release any sewage and maleficent chemical material. No produce any environmental pollution. It is harmless to people. All the washing leavings can automatic recollection. The machine can meet the requirements of ISO14000, EMAS and BS-8800 standards.
Safety:It is safety to clean electronic components and PCB without any damage. It is safety for operator by using of many protections: electronic protection, pressure limited, explosion proof valve and low voltage switch on the operation handle.
Economy:
1.     Compare with traditional high pressure cleaning machine, High Pressure Saturated Steam Cleaning Machine not only save water, but also save the cost of sewage treatment.
2.      Work piece surface is dry during cleaning, leave out the drying process.
3.     No need to remove the parts when washing electronic and mechanical equipment. On-line cleaning can save downtime and assistant work.
High Temperature: Operating temperature: 180ºC.
High pressure: Operating pressure: 10Kg/CM2
Dry saturated steam: put saturated steam that comes from steam generator into heat dehydrate circle system, insure the saturated steam that comes from spray gun is blue super dry and super saturated steam.
Dryness: During washing, the surface keeps dry because of high temperature. No water left after washing. No short circuit to electronic equipment. It is suit to clean electronic component and IC without damage.
Passivation: Saturated Steam combined with lotion that contains passivation material can form protective layer. It can prevent metal surface oxidation.
Phosphorization: After washing, phosphorize on the surface by using of saturated steam.
Sterilization: At high temperature above 120ºC, All the microorganisms and bacterial that harm human body are killed by saturation steam.
High efficiency: It is the best efficient washing method in the world. The efficiency can reach 98%.
Antirust: Saturated Steam combined with lotion that contains antirust material can prevent rust. Validity is 30days.
Convenience: assemble many operations in one process; complete the performance of washing, drying and antirust treatment.
Flexible technics: process is adjustable according to consumer demand.
